WX-DS400
WANXU

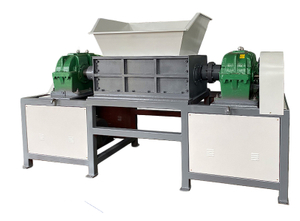

400 model small shredder machine double motor drive crusher machine
Introduce
1.Small shredder, dual motor drive double shaft, can crush thick plastic bottles, thin metal plates, rubber, wires, etc
2. The Model 400 shredder weighs approximately 600 kg and can be customized with blade thickness and tooth profile depending on the scrap and output size
3. The 400 shredders can be connected by conveyors to form a recycling line
4.We have a professional technical team, if you have any needs, we can provide a one-stop solution
4. For this shredder, we can provide 2 years warranty, and our engineers can also visit your location abroad to help you install the machine
Technical parameters
1 | Model | WX-400 series | WX-400D series |
2 | Power | 4kw | 4KW-2 type |
3 | Reducer | JK87 series | JK87-2 |
4 | Electric control cabinet | PLC controller | PLC controller |
5 | Blade rotation speed | 17 rpm | 17 rpm |
6 | Blade size | Diameter 180mm | Diameter 180mm |
7 | Shaft size | Diameter 80 mm | Diameter 80mm |
8 | size | 1100*600*1650 mm | 1570*600*1650 mm |

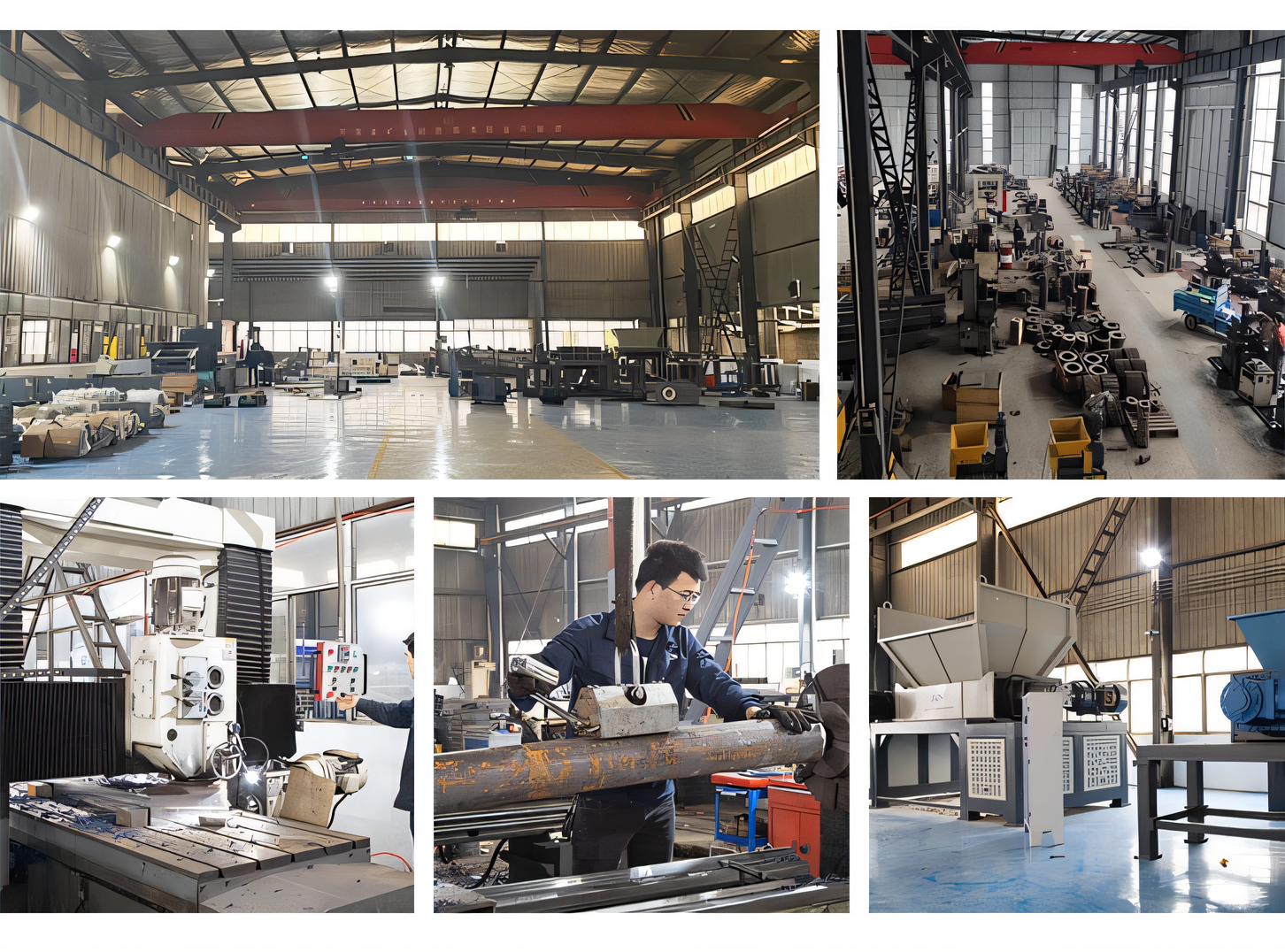

Our company
WANXU is a CE certified manufacturer, exporter and supplier of processing machinery. Since we have always been committed to recycling technology, our products have covered many recycling machinery, such as twin-shaft shredders, single-shaft shredders, and crushers. We can also provide production lines for recycling plastic bottles, solar panels, batteries, etc.
Why choose our WANXU, first of all, we have been in this field of waste recycling for more than 10 years, and we have enough experience and a strong technical team to provide you with the best professional solutions. Secondly, we provide foreign engineers for installation and training, and our engineers can go to the buyer's site to ensure the smooth operation of the machine. Thirdly, in order to guarantee the performance of the machine, before leaving the factory, we can test the machine with materials according to the buyer's needs to make sure that every part is perfect.
In the fast-growing and competitive recycling machinery market, we stand out as a growth company that recognizes the needs of the recycling industry and offers a comprehensive service that includes specialized solutions, machine handling and maintenance. In order to achieve new benchmarks, we are constantly focusing on innovation. Wanxu is looking forward to cooperating with customers from all over the world to create brilliance together.

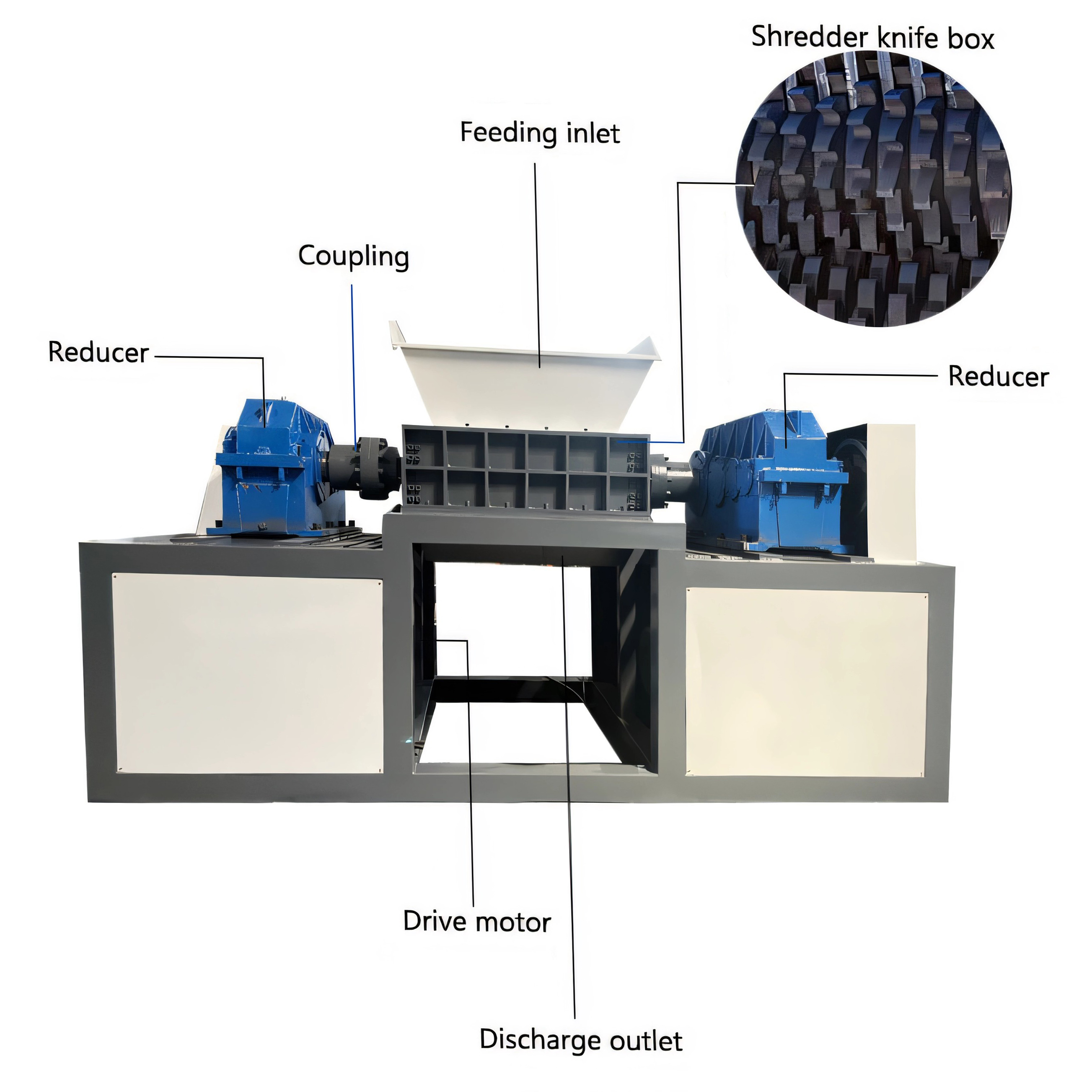

Detailed demonstration of the shredder

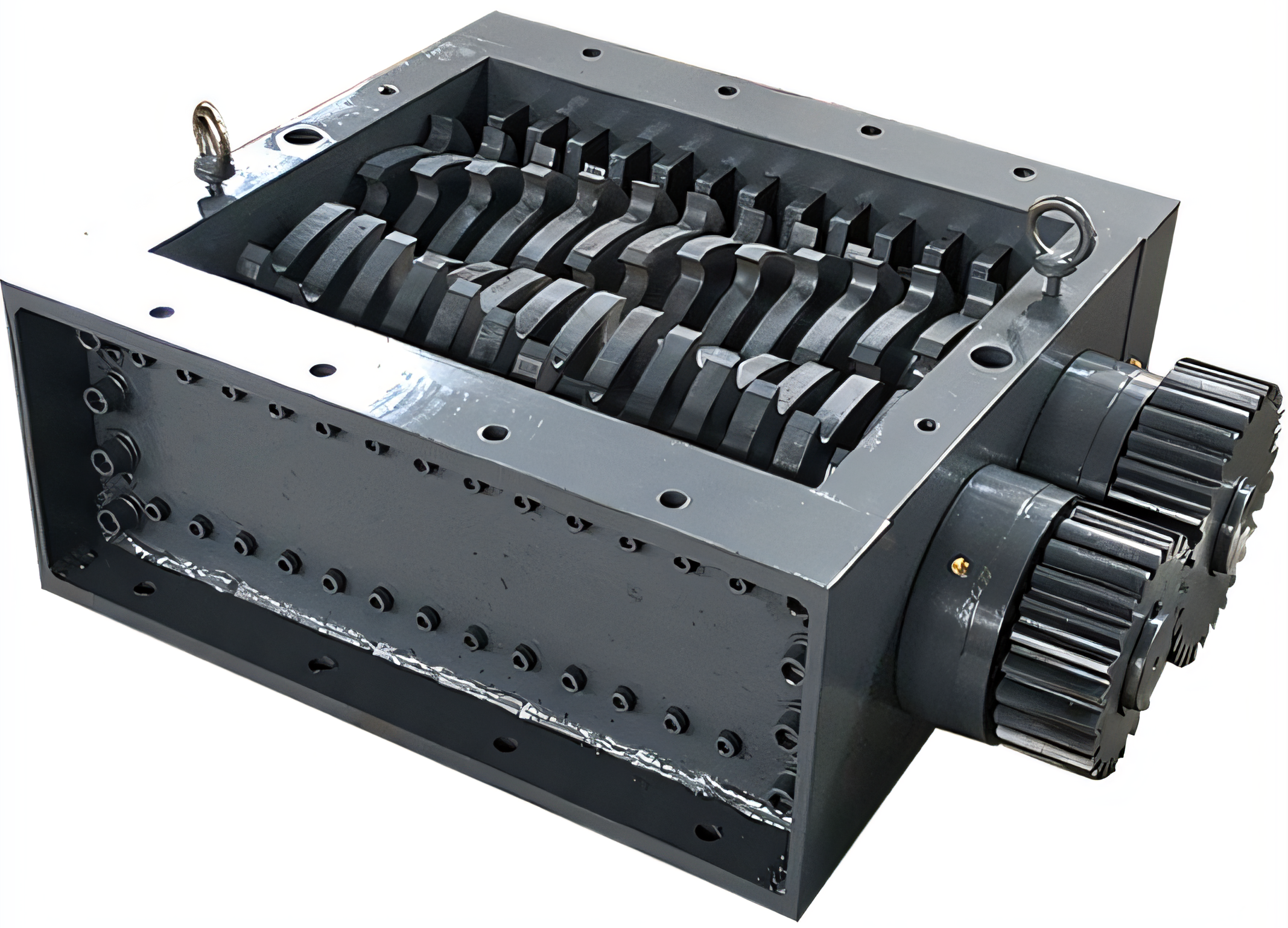

Knife box
The knife box is forged from high-quality alloy tool steel, and has undergone multiple heat treatment and low-temperature freezing technology, which combines toughness and hardness, and can be reused to ensure cutting performance and service life. The cutting tool adopts a split quick-release design, which is easy to maintain and replace, and reduces the cost of downtime.
Support customized tool service: the material, cutting angle, and tooth shape can be customized according to the material characteristics (such as hardness and toughness); The size, quantity and arrangement can be customized according to the production requirements; Provide surface treatment processes such as wear resistance and high temperature resistance to meet production needs.

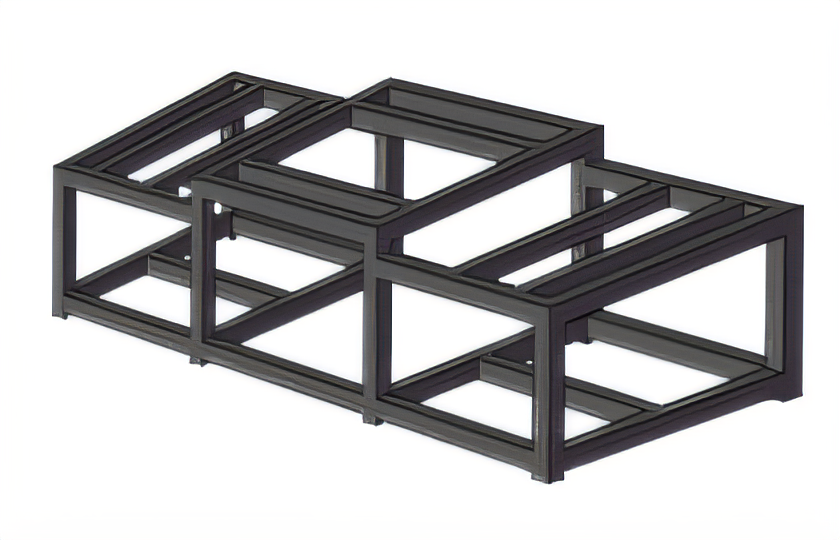

Racks
The all-steel material endows the frame with high strength and rigidity, enabling it to withstand the huge impact and vibration forces generated during the shredder's operation. This ensures stable equipment operation, prevents deformation and cracking, and prolongs service life. The integral welding process forms the frame into a complete structure, enhancing its integrity and reliability. This facilitates the transmission of force and the smoothness of movement, ensuring the working accuracy of the shredder. With a simple overall structure, it is convenient for staff to conduct comprehensive inspections and maintenance, promptly identify and address potential issues. Additionally, the firm welding parts reduce the need for frequent maintenance caused by loose connecting components.

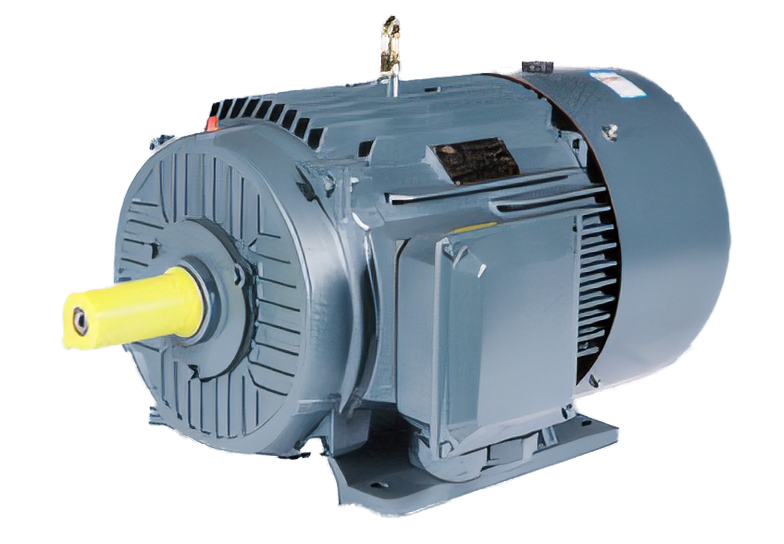

Engine
Using high-purity all-copper motors, leveraging the excellent electrical and thermal conductivity of copper, we fundamentally address the pain points of ordinary motors (such as aluminum-wire motors) that are prone to overheating and wear. Actual test data shows that the service life of all-copper motors is increased by over 60%, with continuous operation for 500 hours without failure—far exceeding industry averages. Whether in high-frequency plastic recycling and crushing, medical waste treatment, or 24-hour uninterrupted industrial crushing production lines, these motors consistently maintain stable power output, preventing downtime losses caused by motor failures and saving enterprises over 30% in maintenance costs.

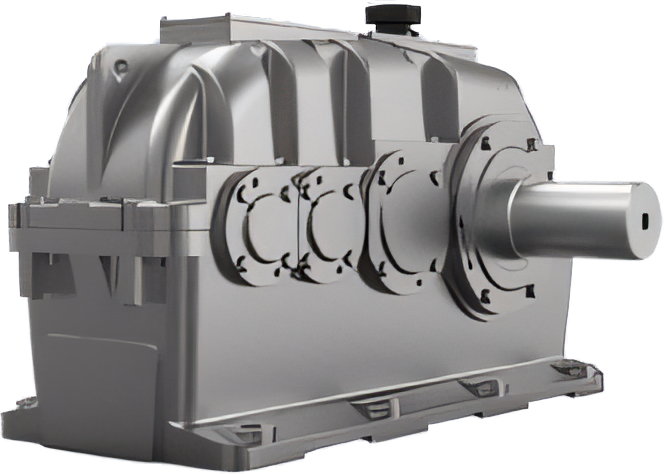

Reducer
The reducers we assemble achieve speed reduction and torque amplification through transmission structures such as gears. They have core advantages including torque amplification to adapt to multiple power sources, precise speed control for stable operation, buffering of impact loads to extend equipment lifespan, compact structure for easy installation and maintenance, high transmission efficiency with low energy consumption, and adaptability to various scenarios such as high-temperature and dusty environments. These reducers can meet the needs of precise control and operations in harsh environments.
