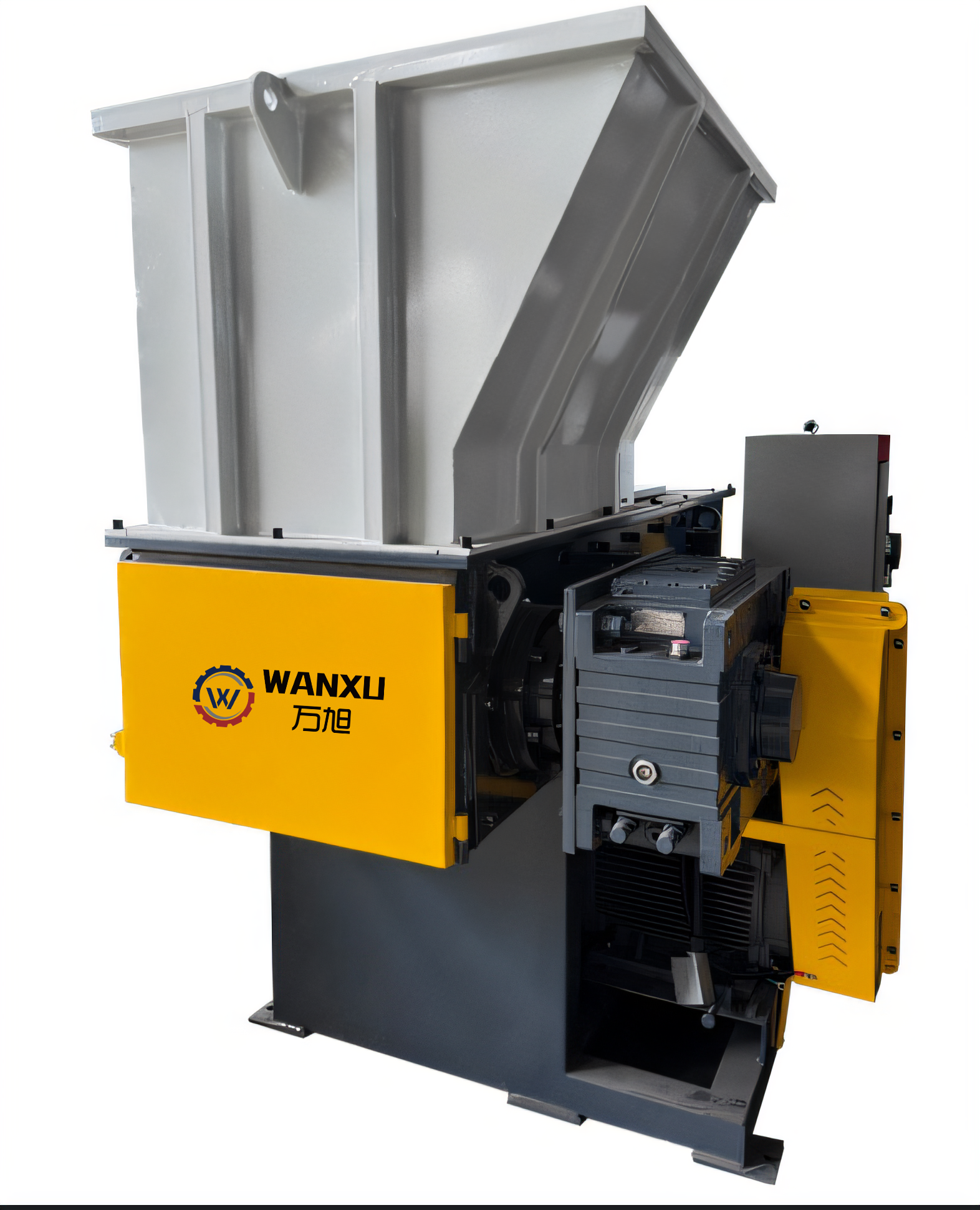

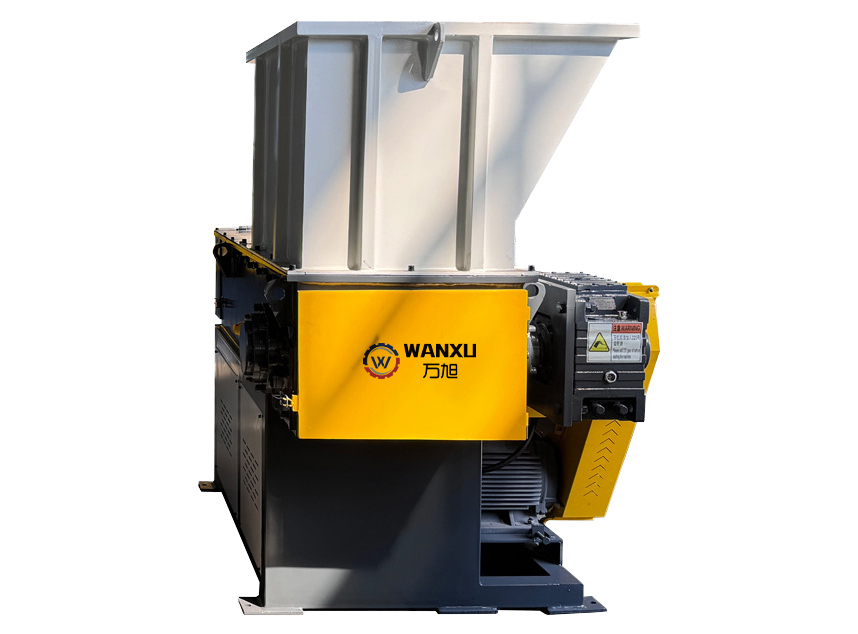

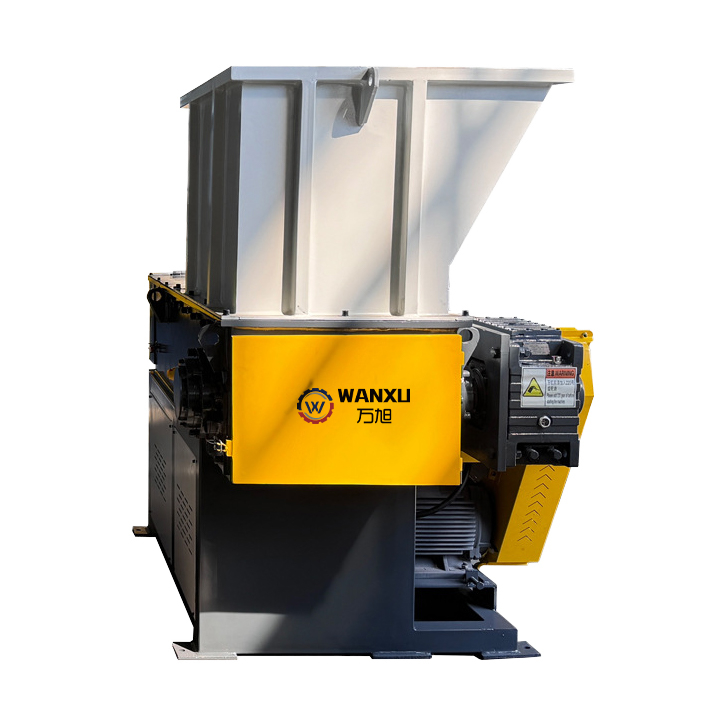

Overview:The WX-600 Energy Saving Flexible Single Shaft Shredder is engineered for high-efficiency and robust performance in recycling applications. Designed by WANXU, a leading manufacturer and exporter of processing machinery, this shredder is built to meet the demanding requirements of the recycling industry. With its advanced features, including a highly durable construction, powerful motor, and integrated hydraulic system, the WX-600 offers exceptional flexibility and energy savings for a variety of shredding tasks.
Key Features:
High Efficiency and Power:The WX-600 is powered by a 30KW main motor and a 2.2KW hydraulic motor, delivering outstanding shredding performance. The rotary blade system, consisting of 28 D2 steel blades, rotates at 80rpm, ensuring efficient processing of various materials with a crush capacity of 400-500 kg/h. The combination of these powerful motors and blades guarantees consistent operation and minimal downtime.

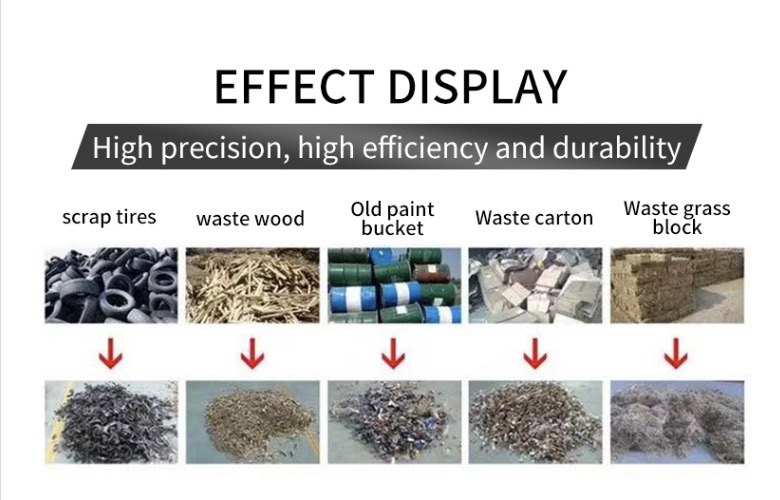

Flexible and Durable Design:Featuring a flexible single-shaft design, the WX-600 provides versatility for shredding a wide range of materials, including plastic, rubber, and electronic waste. The durable construction, including the high-quality SKD-II steel fixed blade and NSK bearings, ensures long-lasting performance in demanding environments. The machine’s water-cooled hydraulic station helps maintain optimal operating temperatures, reducing wear and tear over time.
User-Friendly Control System:Equipped with the advanced NS-D600 electric control system, the WX-600 is easy to operate and monitor. The intuitive control interface allows operators to adjust settings quickly and efficiently, ensuring smooth operation and minimal energy consumption. With a pressure range of 6-12 Mpa, the hydraulic system is optimized for maximum efficiency, enhancing the shredder’s ability to handle tough materials with ease.
Reliable and Safe Operation:The WX-600’s design prioritizes safety and ease of maintenance, with features such as TTO sealing parts and a secure feed port size of 600mmL x 700mmW, ensuring safe material loading. Its compact size (2200x1200x2300mm) and machine weight of 2200kg make it an ideal choice for industrial applications with limited space.
This shredder is a perfect solution for businesses seeking an energy-efficient, versatile, and reliable machine for recycling and waste management processes.
Product Details

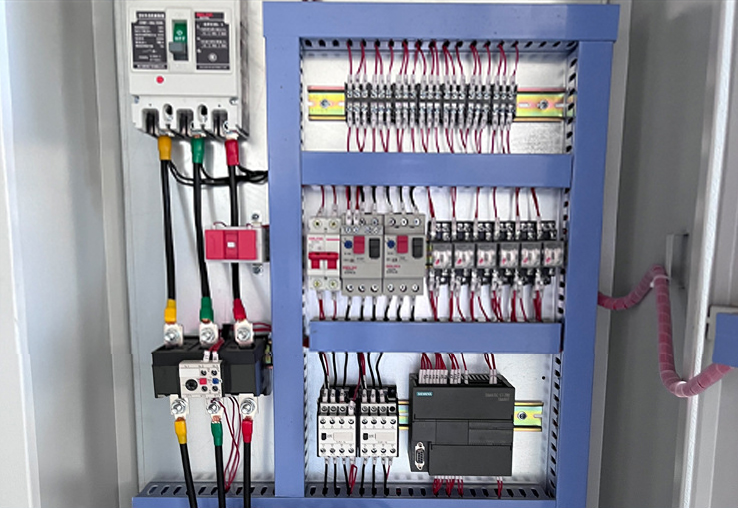

Electric control cabinet
It can automatically control the start, operation and stop of the shredder according to the set program, accurately adjust parameters such as shredding speed and duration to meet the shredding requirements of different materials; it can monitor the motor current, temperature, etc. in real time, and quickly protect and shut down in case of faults such as overload and short circuit, reducing equipment damage; with the help of the electronic control system, operators can conveniently control it through buttons and display screens (if equipped), reducing the intensity of manual intervention, improving the automation and intelligence level of shredding operations, and ensuring the stable, efficient and safe operation of the shredder.

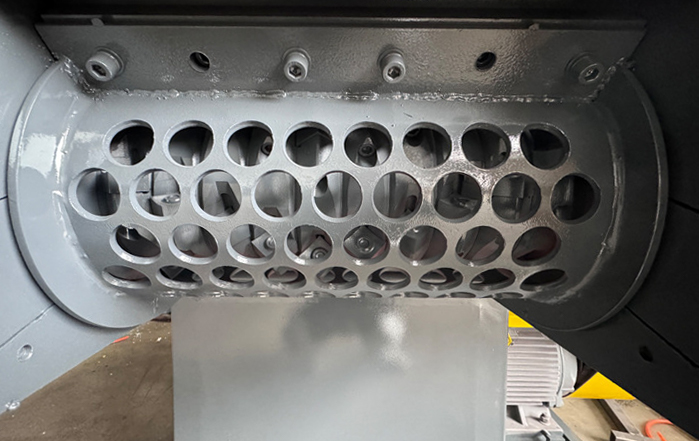

Screens
1.Adapt to different materials: Different structures of filter screens can be customized for materials with different properties, such as films, plastic bottles, thick-walled pipes, etc. For example, when processing films, a filter screen with a special anti-hanging design can be customized to reduce film winding and blocking phenomena.
2.Controlling the particle size of discharged materials: Users can customize filter screens with different pore sizes according to their subsequent production needs and the types of materials being processed. For example, the diameter of filter screen pores can be selected between 20-100mm to meet the requirements for discharged materials of different particle sizes.
3.Easy maintenance: The customizable filter screen adopts a modular design. For example, the screen body is matched with a detachable toothed plate, which allows for independent disassembly and replacement when the screen is damaged or when materials need to be changed. This reduces both maintenance costs and maintenance time.

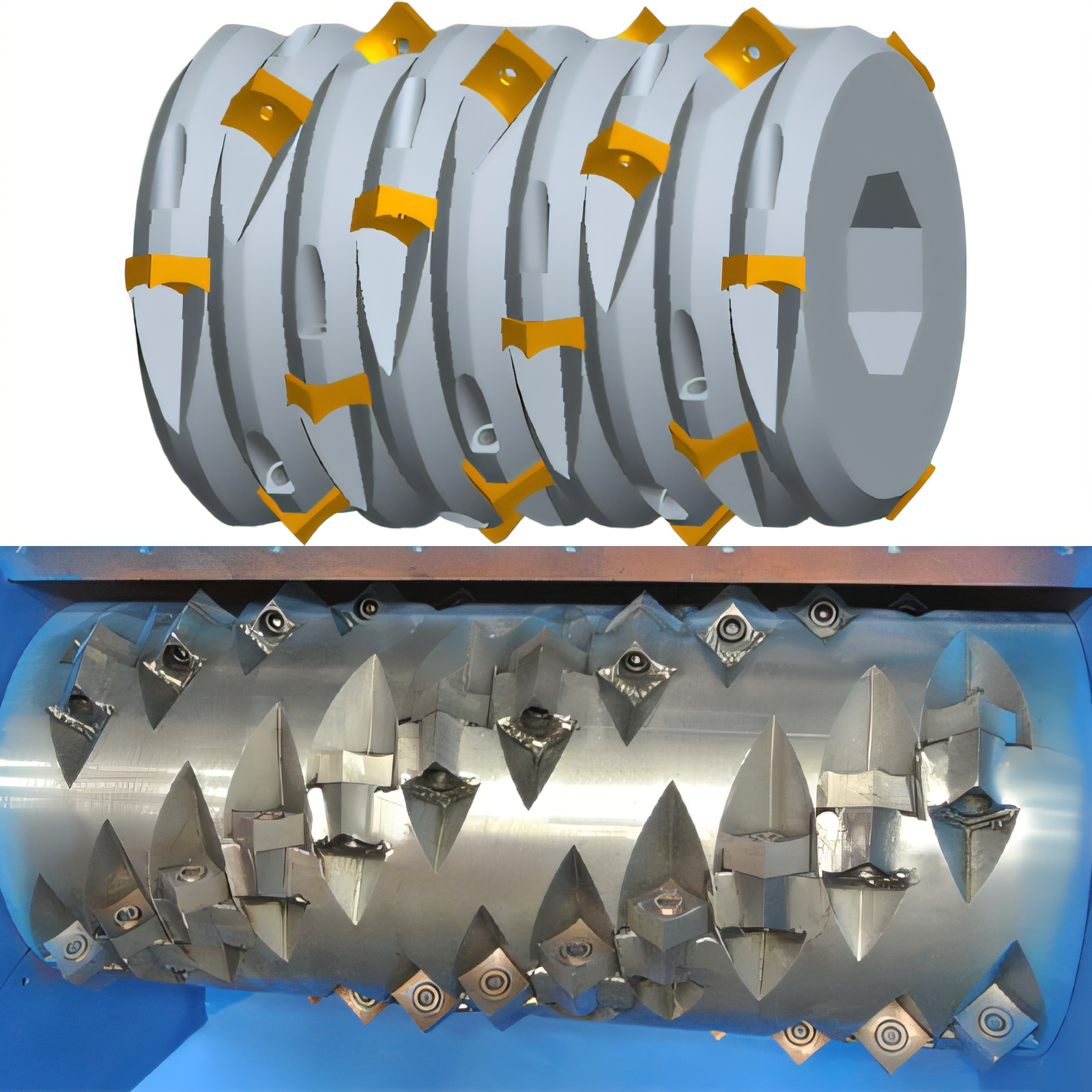

Cutter
Modular Design of Cutter Blades：When a set of blades is worn or damaged, there is no need to disassemble the entire cutter shaft system. Only the faulty module needs to be positioned and replaced via quick connectors such as bolts and clamping slots. The replacement time for a single set of blades can be shortened from several hours in the traditional method to within 30 minutes. By replacing modular blades of different specifications (such as serrated blades for hard plastics and anti-winding blades for films), the same equipment can quickly switch between material processing types without replacing the entire cutter set, significantly enhancing production line flexibility.
