| Quantity: | |
|---|---|
wx-pc300
WANXU

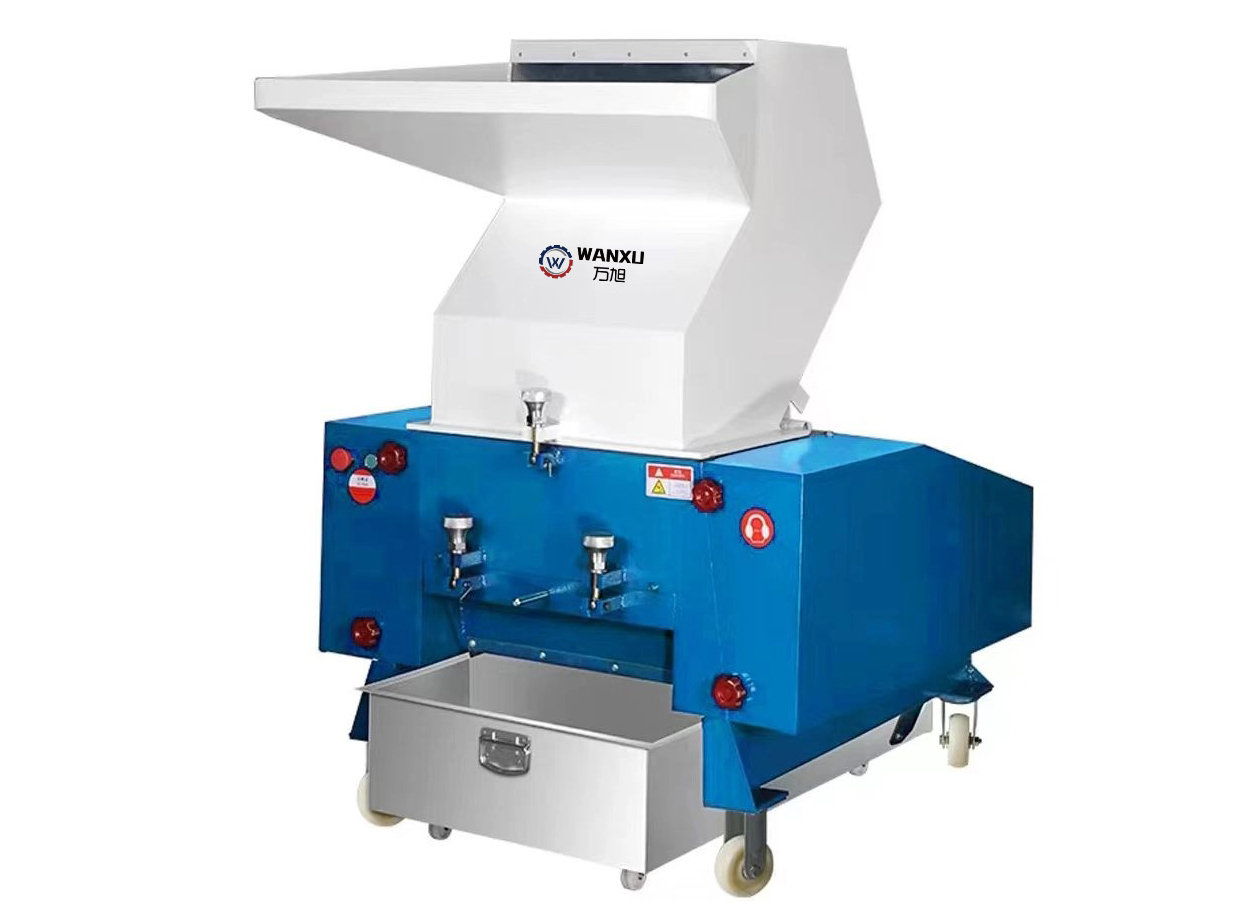

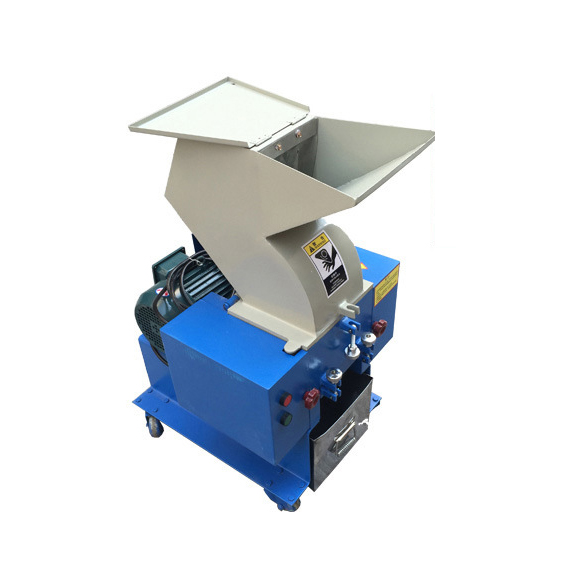

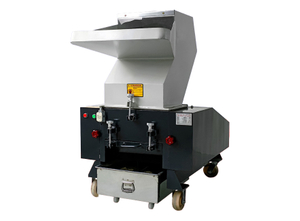

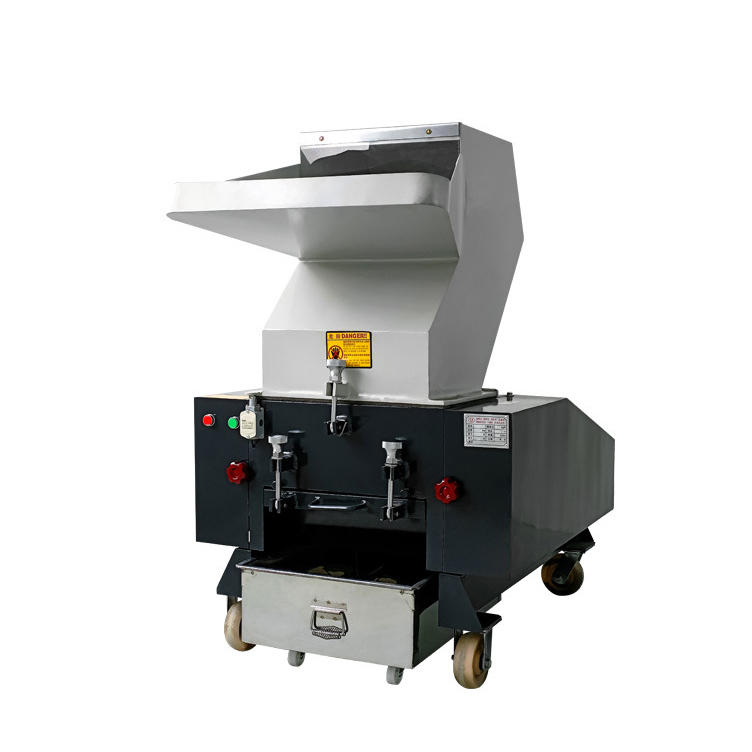

PVC/PP high-speed universal powerful punching machine crusher Low noise PVC plastic
plastic bottle crusher, also known as plastic bottle granulator, is a plastic crusher designed specifically for processing hollow plastic products. This machine is mainly suitable for processing various hollow plastic containers, such as hollow bottles and hollow barrels. Whether it is square or round PC/PET hollow blow-molded barrels, it can be crushed directly without the need for manual cutting, avoiding material bouncing. Additionally, this crusher features low power consumption and high efficiency, making it widely used in the recycling and reuse of waste plastics and the processing of non-conforming products.
▪ Installed with internal hexagonal screw countersunk holes, preventing screw wear due to long-term use.
No. | ||
1 | Model | OW-S300 |
2 | Motor | 5.5kw,7.5hp |
3 | Fixed blade | 2pcs |
4 | Rotary Blade | 9pcs |
5 | Capability | 150*200kg/h |
7 | Diameter size | 1030*720*1390MM |
Detail Display
Motor
This shredder is equipped with a high-quality oxygen-free copper motor. With a precisely balanced rotor assembly, it achieves stable high-speed operation at 300 RPM, ensuring no abnormal speed fluctuations during operation. The heat dissipation design with dual cooling fans and airflow channels, combined with a thermal overload protection system, ensures that the motor can operate continuously for long periods without overheating or shutdown. The motor is connected to the shredding device through a V-belt transmission system, and the tension adjustment device ensures efficient power transmission, allowing it to easily crush thick plastic products and meet the requirements of high-intensity operations.

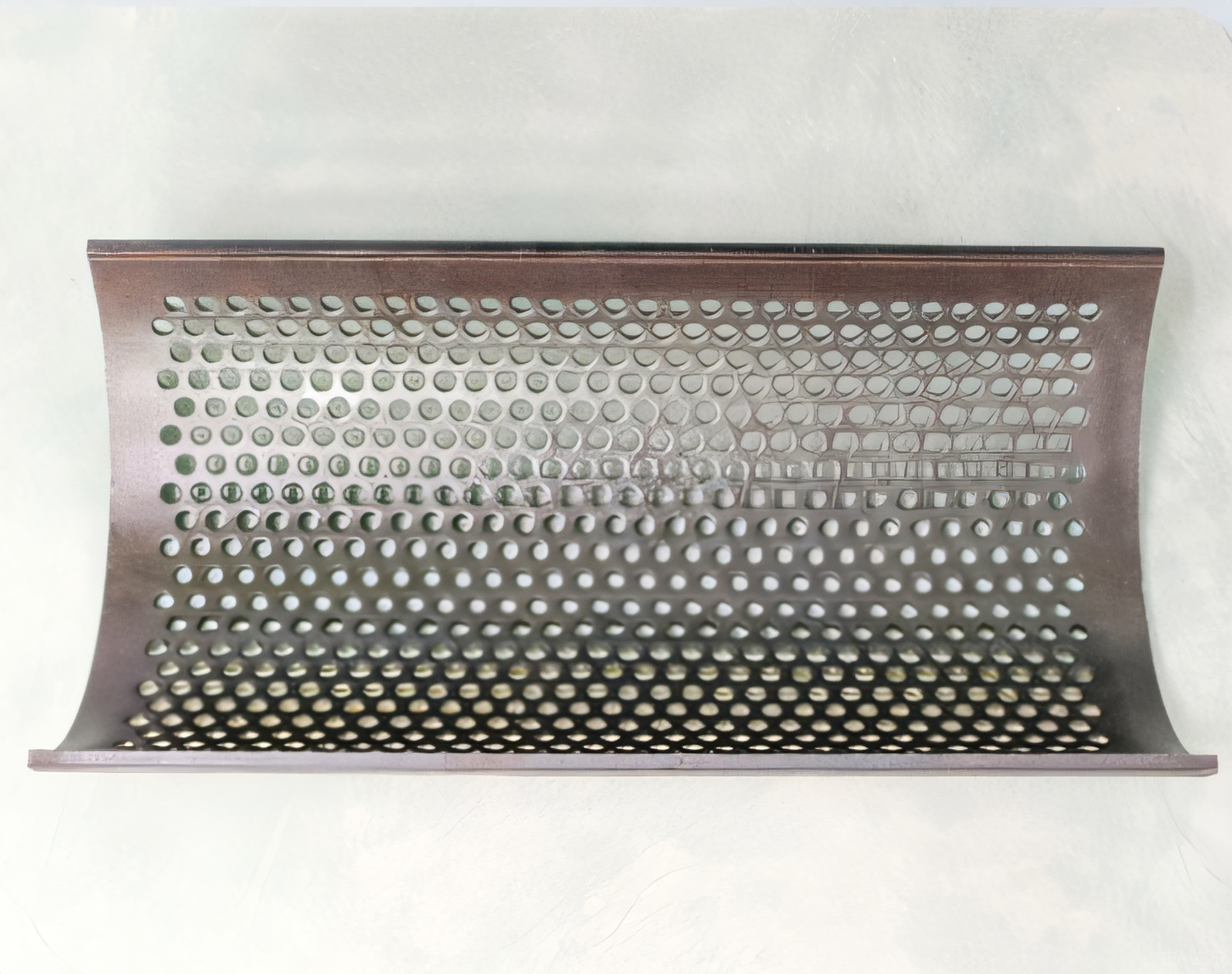

Filter screen
The customizable sieve mesh supports flexible adjustment of mesh size, material, and structure according to material characteristics (such as particle size, shape, hardness, etc.), achieving precise screening to meet diversified production needs. This avoids material blockages or incomplete screening caused by fixed sieves, enhancing screening efficiency and flexibility.
Hopper
The newly upgraded enlarged hopper, through expanded volume and optimized internal structural design, can load 50% more processing materials per batch compared to ordinary hoppers, greatly reducing the frequency of frequent feeding and significantly improving production efficiency. Meanwhile, a specially designed material baffle curtain is ingeniously installed at the front of the hopper. Made of high-strength flexible and wear-resistant materials, this baffle curtain features excellent flexibility and abrasion resistance, effectively cushioning the impact force exerted on materials during processing. When the equipment is in operation, the baffle curtain acts like a protective barrier to flexibly block material splashing caused by vibrations, air currents, and other factors generated by high-speed operation. This not only avoids material waste but also creates a safer working environment for operators, balancing the dual needs of efficient production and safety protection.
PVC/PP high-speed universal powerful punching machine crusher Low noise PVC plastic
plastic bottle crusher, also known as plastic bottle granulator, is a plastic crusher designed specifically for processing hollow plastic products. This machine is mainly suitable for processing various hollow plastic containers, such as hollow bottles and hollow barrels. Whether it is square or round PC/PET hollow blow-molded barrels, it can be crushed directly without the need for manual cutting, avoiding material bouncing. Additionally, this crusher features low power consumption and high efficiency, making it widely used in the recycling and reuse of waste plastics and the processing of non-conforming products.
▪ Installed with internal hexagonal screw countersunk holes, preventing screw wear due to long-term use.
No. | ||
1 | Model | OW-S300 |
2 | Motor | 5.5kw,7.5hp |
3 | Fixed blade | 2pcs |
4 | Rotary Blade | 9pcs |
5 | Capability | 150*200kg/h |
7 | Diameter size | 1030*720*1390MM |
Detail Display
Motor
This shredder is equipped with a high-quality oxygen-free copper motor. With a precisely balanced rotor assembly, it achieves stable high-speed operation at 300 RPM, ensuring no abnormal speed fluctuations during operation. The heat dissipation design with dual cooling fans and airflow channels, combined with a thermal overload protection system, ensures that the motor can operate continuously for long periods without overheating or shutdown. The motor is connected to the shredding device through a V-belt transmission system, and the tension adjustment device ensures efficient power transmission, allowing it to easily crush thick plastic products and meet the requirements of high-intensity operations.
Filter screen
The customizable sieve mesh supports flexible adjustment of mesh size, material, and structure according to material characteristics (such as particle size, shape, hardness, etc.), achieving precise screening to meet diversified production needs. This avoids material blockages or incomplete screening caused by fixed sieves, enhancing screening efficiency and flexibility.
Hopper
The newly upgraded enlarged hopper, through expanded volume and optimized internal structural design, can load 50% more processing materials per batch compared to ordinary hoppers, greatly reducing the frequency of frequent feeding and significantly improving production efficiency. Meanwhile, a specially designed material baffle curtain is ingeniously installed at the front of the hopper. Made of high-strength flexible and wear-resistant materials, this baffle curtain features excellent flexibility and abrasion resistance, effectively cushioning the impact force exerted on materials during processing. When the equipment is in operation, the baffle curtain acts like a protective barrier to flexibly block material splashing caused by vibrations, air currents, and other factors generated by high-speed operation. This not only avoids material waste but also creates a safer working environment for operators, balancing the dual needs of efficient production and safety protection.
