Single Shaft Shredder For Metal Scrap Recycling
High Efficiency E-waste Recycling Single Shaft Shredder is designed for efficient processing of all kinds of e-waste. It is ideal for breaking down materials such as plastics and metals in electronic devices.
| Parameter | Value |
| Model | WX-600 |
| Rotary Diameter | 280mm |
| Main Shaft Width | 600mm |
| Rotary Blade Number | 28 blades (D2 steel) |
| Rotary Shaft Speed | 80rpm |
| Fixed Blade Number | 1 blade (SKD-II steel) |
| Hydraulic Motor | 2.2KW |
| Hydraulic Cylinder Size | 60x600mm |
| Hydraulic Station Cooling | Water cooling |
| Using Pressure | 6-12 Mpa |
| Crush Capacity | 400-500 kg/h |
| Feed Port Size | 600mmL x 700mmW |
| Main Motor Power | 30KW |
| Reducer | H2HH4-20-B |
| Bearing | NSK |
| Sealing Part | TTO |
| Machine Weight | 2200kg |
| Machine Size | 2200x1200x2300mm |
| Electric Control System | NS-D600 |
Advantages and Applications of Single Shaft Shredder
Efficient: Processes a wide range of materials quickly, increasing productivity.
Energy Efficient: Consumes less electricity while maintaining optimal performance.
Durable: Made with high-quality materials to ensure long-term operation.
Customizable: Can be customized for different types of materials and applications.
Plastic Recycling: Shreds plastic bottles, pipes, and films for reuse.
Textile Recycling: Ideal for recycling fabrics and textiles.
E-waste Recycling: Efficiently processes electronic waste such as circuit boards and cables.
FAQs
1. What materials can the single-shaft shredder for e-waste recycling process efficiently?
The shredder can process a wide range of materials, including plastic bottles, cardboard, plastic chunks (PP, PE, PET, PC, ABS, nylon), plastic tubes, films, textiles, e-waste, aluminum cans, paper, wood, foam, etc.
2. What is the capacity of the shredder?
The shredder has a processing capacity of 400-500 kg per hour, suitable for medium-to-high volume e-waste recycling.
3. What kind of blades does the shredder use?
The shredder is equipped with durable blades made from materials such as Cr12MoV, SKDII, and D2. These can be customized to suit your specific needs.
4. What is the maximum feed size that the shredder can handle?
The shredder has a feed opening size of 600mmL × 700mmW, enabling it to process larger materials efficiently.
5. Can the shredder be customized for different applications?
Yes, the shredder can be customized to suit a variety of industrial needs, including adjusting the blade material, screen design, and motor specifications.
Features of Single Shaft Shredder for Plastic Recycling
Versatility: Suitable for crushing and recycling a wide range of thick-walled materials and residues.
Applicable materials: Processing plastics (PP, PE, PET, PC, ABS, nylon), textiles, e-waste, aluminum cans, paper, wood, foam, etc.
Working principle: Uses rotating discs and static blades to effectively crush materials.
Blade material: Made of Cr12MoV, SKDII, D2 steel, can be customized according to customer needs.
Customizable screen: The screen can be customized according to the type of material being processed.
Product Advantages

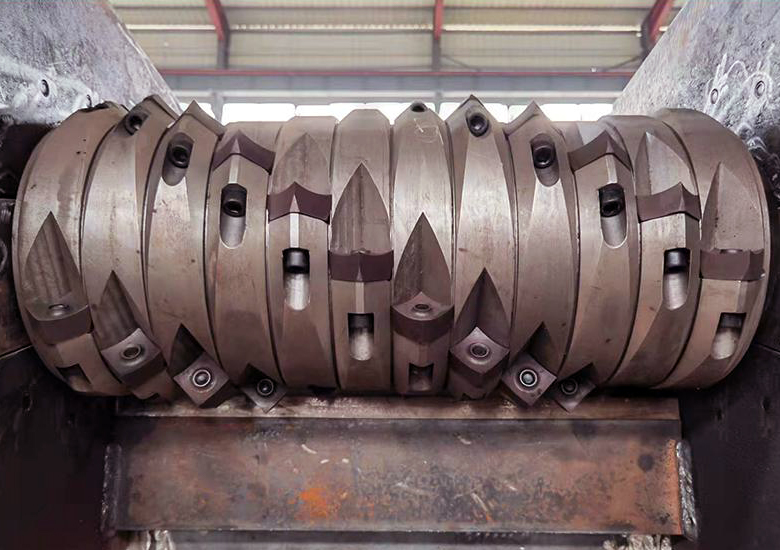

blade
The high-strength alloy knife roller adopts a modular blade design, which not only makes blade replacement and maintenance more convenient, significantly reduces downtime, and improves production efficiency; but also allows the shredder to flexibly adapt to different material characteristics and multiple application scenarios through customized blade replacement, remarkably enhancing the equipment's environmental adaptability and working condition compatibility.

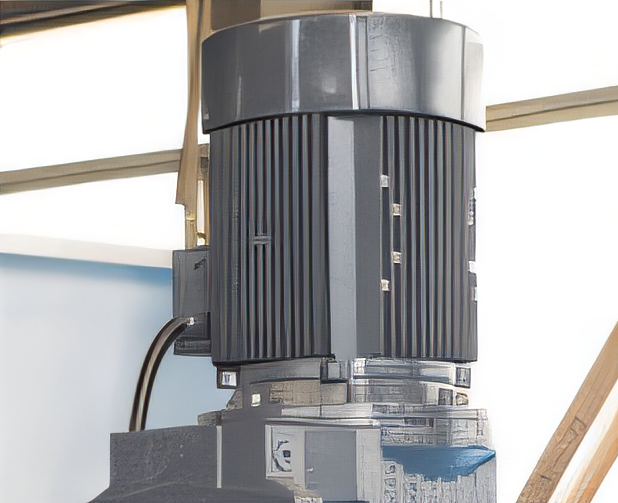

motor
The motor power of the spindle ranges from 25 to 75 kW, which can be customized and adjusted according to actual production requirements to suit production scenarios of different production scales.
Advantages of using pure copper winding material:Copper has low resistivity, minimizing energy loss. This improves motor efficiency by 10%-15%, reducing long-term energy consumption costs.
Copper winding offers high mechanical strength, resisting vibration and impact. It is ideal for continuous, high-load industrial operations.
