In the modern world, plastic waste has become one of the most pressing environmental challenges. As industries grow, so does the need for efficient solutions to handle plastic waste. Plastic Crusher Machines play a critical role in reducing plastic waste by breaking down plastic materials into smaller, reusable pieces. Understanding the technology behind these machines is crucial for businesses seeking to enhance their efficiency, reduce operational costs, and contribute to environmental sustainability.
The advancements in plastic crushing technology not only make waste management more efficient but also pave the way for improved productivity and reduced energy consumption.

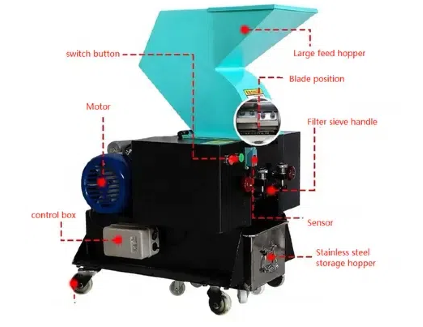

At the heart of every Plastic Crusher Machine is the process of reducing plastic materials into smaller, manageable sizes. The basic functionality involves the use of powerful blades and motors to crush and cut plastic waste. The machine takes large plastic objects such as bottles, containers, and films and transforms them into small fragments that can be more easily reused, recycled, or disposed of.
The crushing process is powered by high-torque motors that drive the blades to rotate at high speeds. The plastic waste enters the crushing chamber, where it is subjected to intense pressure and shear forces, breaking it down into smaller pieces. The efficiency of this process largely depends on the machine's design, including the quality of the blades, motor power, and the structure of the crushing chamber.
The cutting mechanism and the design of the blades are crucial to the performance of the Plastic Crusher Machine. There are several types of cutting blades commonly used in plastic crushers:
Rotary Blades: These blades rotate at high speeds to shear and cut the plastic material into smaller fragments. They are ideal for processing a wide range of plastics.
Fixed Blades: Fixed blades are stationary and are used in combination with rotary blades to create a cutting action. These are often used in more heavy-duty machines for tougher materials.
Serrated Blades: Serrated blades are designed with teeth or ridges to provide a more aggressive cutting action, making them ideal for cutting thick, brittle plastics.
The sharpness, hardness, and material composition of the blades are key factors in ensuring efficient cutting. High-quality steel blades provide durability and the ability to withstand prolonged use without losing sharpness. The rotation speed of the blades also plays a significant role in the overall crushing performance—higher speeds often lead to quicker processing times, but can also increase wear and tear on the machine.
A key component of any Plastic Crusher Machine is its power system, which includes the motor and torque specifications. There are two main types of plastic crushers based on speed:
Low-Speed Crushers: These crushers operate at lower speeds and are typically used for handling softer plastic materials. They consume less energy and produce less heat, making them suitable for more delicate plastic types.
High-Speed Crushers: These are designed for processing large volumes of hard or dense plastic materials. The higher the speed, the more efficient the crushing process, as they can quickly break down large plastic items into smaller pieces.
Motor torque and RPM (revolutions per minute) are critical factors that affect the performance and efficiency of the crusher. The torque dictates the crushing force applied to the plastic, while the RPM determines how quickly the plastic is processed. More powerful motors and higher RPMs lead to faster processing, which is essential for businesses handling large volumes of plastic waste.
In recent years, there has been a push towards energy-efficient motor designs, which help reduce power consumption without compromising on performance. This trend has a direct impact on reducing operational costs and making the recycling process more sustainable.
Feeding and output systems are vital parts of the Plastic Crusher Machine that affect the machine's overall efficiency. The feeding system controls how plastic waste enters the crushing chamber, and there are different types of feeding mechanisms:
Manual Feeding: Plastic materials are loaded into the machine manually, typically used in smaller-scale operations.
Conveyor-Fed Systems: Conveyor belts move plastic waste to the crusher automatically, making them suitable for medium to large-scale operations where continuous processing is necessary.
Hopper-Based Systems: A hopper is used to feed materials into the machine. This system is commonly found in high-capacity crushers.
Once the plastic waste is processed, the output size is controlled by using sieve screens or adjustable settings. These systems ensure that the size of the crushed material meets the requirements for downstream processing or recycling. Additionally, air blowers and collection bins are often employed to discharge the crushed plastic, ensuring clean and efficient material handling.
Modern Plastic Crusher Machines are increasingly equipped with advanced automation and smart controls, enabling improved operation and greater efficiency. PLC (Programmable Logic Controller) systems allow for automated operation, which reduces the need for manual input and minimizes human error. These systems can control everything from motor speed to material flow, ensuring that the machine runs at optimal performance levels.
Sensor-based monitoring is also commonly used in these machines. Sensors can provide real-time feedback on the machine's performance, enabling adjustments to be made automatically to ensure the most efficient processing. Features like overload protection are integrated to prevent machine damage in case of blockage or excessive material input.
Noise pollution is an important consideration in industrial settings. Modern Plastic Crusher Machines are designed with noise reduction technology to minimize the impact on workplace safety and comfort. This includes low-noise motors and insulated housing, which reduce sound emissions during operation. Additionally, vibration-dampening features help minimize mechanical vibrations, further improving workplace safety.
Energy consumption is a major concern in industrial operations, and Plastic Crusher Machines are no exception. Inverter technology has been integrated into many modern machines, optimizing energy consumption based on real-time needs. This technology adjusts motor speeds according to the volume and density of the material being processed, ensuring that the machine operates efficiently and reduces power usage during lighter workloads.
Other innovations in energy efficiency include eco-friendly power management systems that use regenerative braking and other methods to reclaim energy during the crushing process, further lowering energy costs.
Safety is a priority in any industrial environment, and Plastic Crusher Machines are equipped with a range of safety features to ensure smooth and secure operation:
Auto-reverse functions: This feature prevents the machine from jamming by automatically reversing the direction of the motor when a blockage is detected.
Emergency stop features: In case of an emergency, an immediate stop function halts the machine to prevent further damage or injury.
Overload protection: This safety mechanism ensures that the motor and blades are not damaged by excessive load or material buildup, extending the lifespan of the machine.
Modern Plastic Crusher Machines are versatile and can handle various types of plastics, including PET, PP, PVC, HDPE, and LDPE. The crushing technology used in these machines is tailored to accommodate the different densities, thicknesses, and brittleness of each plastic type. Some specialized machines are designed to handle specific types of plastic, such as film, bottles, pipes, and sheets, ensuring that the right crusher is used for the appropriate material.
Plastic crushers are integral to the plastic recycling process. They are often used in conjunction with shredders, granulators, and extrusion systems to form a complete recycling solution. These machines work together to ensure that plastic waste is processed efficiently, reducing its environmental impact.
The uniformity of the output size is essential for downstream processes, as it ensures that the crushed material can be easily melted and reformed for reuse. The integration of different technologies in the waste management system creates a streamlined, cost-effective process that promotes sustainability.
Understanding the technology behind Plastic Crusher Machines is vital for businesses that aim to maximize their efficiency and sustainability in plastic waste management. The advancements in crushing technology, including automated controls, energy-efficient motors, and safety features, make these machines more reliable and productive than ever before.
