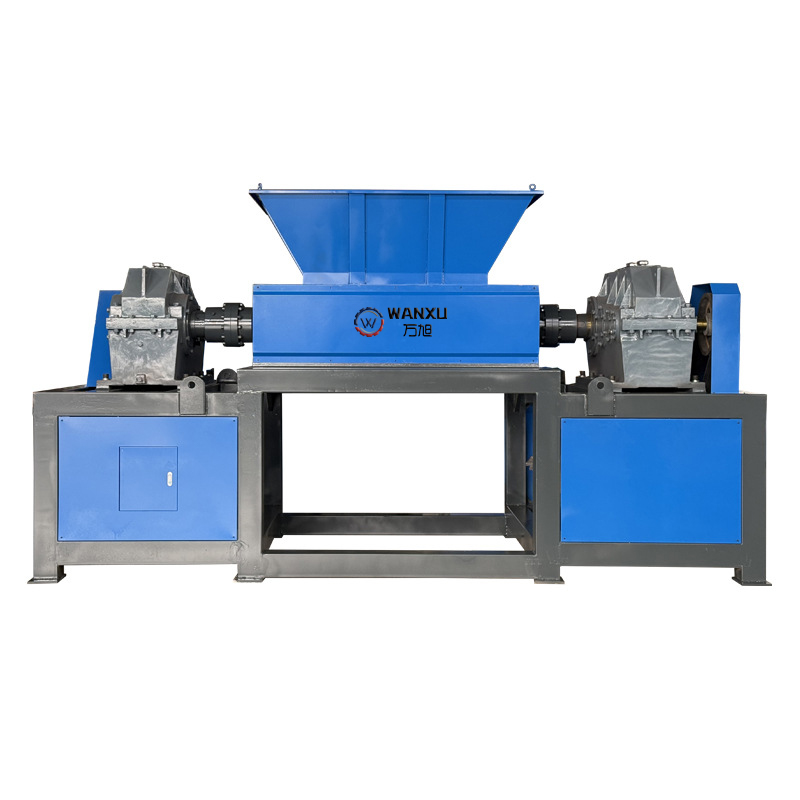

A poorly planned shredding facility permanently caps throughput, regardless of how advanced your equipment might be. Mechanical power means little if the facility architecture restricts continuous operation. Operational bottlenecks can quickly erase the profit potential of expensive, high-torque machinery. Designing a facility layout is a high-stakes risk mitigation exercise. You must balance a continuous waste processing flow with operator safety, complex maintenance accessibility, and rigid physical facility constraints. This comprehensive guide provides a practical framework for evaluating layout proposals and actively avoiding common infrastructure pitfalls. We will show you exactly how to maximize operational return on investment by systematically optimizing your physical space. You will learn to prioritize critical maintenance access, actively prevent cross-traffic hazards, and intelligently build highly scalable material pathways.
Flow over density: Optimizing waste processing flow yields higher throughput than simply packing maximum equipment into a minimum footprint.
Maintenance dictates footprint: True space planning must account for heavy equipment access, rotor removals, and safe clearance zones.
Infrastructure integration is critical: Successful shredder plant design requires upfront alignment on foundation load-bearing, power routing, and vibration isolation.
Scalability requires phased planning: Effective layouts reserve modular space for future secondary shredders, screens, or automated sorting systems.
Many operators severely underestimate the daily financial impact of poor spatial planning. A compromised recycling plant layout creates hidden penalties. These penalties drain profitability long after the initial installation phase ends.
Inadequate buffer zones create an immediate choke point. You need sufficient space between tipping floors, infeed conveyors, and discharge points. Without this space, upstream machines starve while downstream machines overflow. Material jams trigger forced downtime. Your expensive shredder sits idle while loaders scramble to clear backlogs. Efficient designs prioritize wide, decoupled staging areas. They ensure a steady material diet for primary shredders.
Facility layouts often force different traffic streams to intersect. Forklift routes cross pedestrian walkways. Front-end loader paths block maintenance vehicles. These intersections create severe safety hazards. They also slow down mobile equipment operators. Drivers must constantly brake and verify blind spots. Every delayed loader cycle slightly reduces your hourly throughput. Separating mobile equipment zones from personnel corridors eliminates these risks.
Technicians require physical clearance to extract heavy components safely. Rotors, screens, and motors demand significant swing space. When a layout packs machines too tightly, maintenance becomes an agonizing ordeal. A standard screen swap might take hours instead of minutes. Technicians must dismantle surrounding infrastructure just to reach the primary machine. Prolonged downtime destroys productivity. Smart designs leave generous perimeters for overhead cranes and tooling carts.
You should frame layout success using the right metrics. Do not judge a blueprint by how much square footage it saves. Dense layouts usually hide severe operational flaws. Instead, evaluate the design based on maximized uptime. Look at the projected reduction in cost-per-ton. Space is an asset you leverage to keep machines running continuously.
Different facility shapes demand different layout geometries. You must align your building's footprint with optimal material flow logic. Effective shredding line planning usually starts by selecting one of three core configurations.
A linear configuration moves material in a single straight trajectory. It works best for long, narrow facilities. High-volume, single-stream processing plants heavily favor this approach.
Pros: It offers the simplest conveyor engineering. It minimizes material transfer angles. Wear and tear on belts drops significantly.
Cons: It requires a massive linear footprint. Creating return-loops for oversized materials becomes highly complicated. You often need side-exit conveyors just to handle rejects.
Square facilities benefit immensely from bent configurations. U-shape and L-shape designs curve the material flow. They suit buildings sharing shipping and receiving docks on the same wall.
Pros: These layouts provide excellent centralized supervision. One operator can often monitor the infeed and outfeed simultaneously. Power distribution becomes cheaper due to shorter cable runs.
Cons: They require complex transfer points. Drop-boxes and angled conveyor transitions increase the risk of material spillage. Wear parts degrade faster at these transition zones.
You must also evaluate elevation strategies. Vertical material flow utilizes gravity-fed hoppers and elevated sorting platforms. This strategy saves valuable floor space. However, it demands high ceiling clearances and robust structural supports. Horizontal flow relies on ground-level incline conveyors. It requires more floor space but simplifies heavy maintenance. Ground-level equipment provides much easier access for forklifts during emergency repairs.
Core Shredding Layout Comparison Chart | |||
Layout Type | Ideal Facility Shape | Primary Advantage | Notable Disadvantage |
|---|---|---|---|
Linear | Long and narrow | Simple conveyor engineering | Complicated reject loops |
U-Shape | Square or wide | Centralized operator supervision | Complex transfer points |
L-Shape | Corner-oriented | Separated dock utilization | Requires angled drop-boxes |
A successful layout synchronizes every step of the material journey. You must treat the facility as one interconnected organism. Every isolated process impacts the overall system efficiency.
Your shredder must never starve. You need adequate stockpile volume at the tipping floor. Calculate your required volume based on your target hourly throughput. Factor in delivery truck schedules and potential weather delays. A generous inbound staging area provides a crucial buffer. It absorbs irregular delivery spikes without causing facility gridlock.
Sizing your infeed mechanism correctly prevents early bottlenecks. You must choose between pit conveyors and above-ground incline conveyors. Base this decision on loader cycle times and material bulk density. Pit conveyors allow wheel loaders to dump material rapidly. They push waste directly into the floor trench. Above-ground conveyors require loaders to lift material higher. This elevation adds seconds to every cycle.
Material exiting the shredder expands in volume. You must design adequate drop heights to accommodate this fluff factor. Low drop heights cause immediate material bridging. Conveyor jams follow shortly after. Design deep bunker capacities for the outfeed buffer zones. Outbound trucks rarely arrive on perfectly precise schedules. You need space to store shredded material safely while waiting for transport.
No shredding line processes 100% of material perfectly on the first pass. Unshreddable items will enter the chamber. Oversized chunks will pass through the screens. A resilient shredding plant layout integrates dedicated bypass lanes. It includes smooth recirculation loops for oversized pieces. These loops automatically return large chunks to the infeed. They do this without disrupting the primary material line.
Calculate daily throughput variations before sizing staging floors.
Match pit conveyor widths to your standard loader bucket width.
Design discharge bunkers to hold at least four hours of output.
Map a clear secondary route for hazardous un-shreddable rejects.
Regulatory compliance and worker safety depend entirely on spatial geometry. Cramped facilities inevitably violate occupational safety standards. Proper planning builds compliance directly into the concrete foundation.
Preventative maintenance requires extensive physical space. You must specify exact radius needs for heavy mobile equipment. Forklifts need room to maneuver heavy replacement screens. Overhead cranes require unobstructed travel paths to lift rotor assemblies. Tooling carts need wide, flat pathways to reach the machine base. A minimum three-meter perimeter around primary shredders is standard industry practice.
Shredding creates immense friction. Friction breeds heat, sparks, and localized fires. You must design layout gaps specifically for thermal monitoring equipment. Leave adequate vertical space for spark detection drops along the conveyor lines. Automated fire suppression systems require bulky water tanks and complex pipe routing. Allocate designated utility corners for these critical safety systems early in the design phase.
Waste processing generates significant airborne particulates. Your layout must accommodate large-scale air filtration equipment. Allocate optimal locations for extraction hoods directly above the shredder chamber. Plan short, straight ductwork routing to the central scrubber units. Long, winding ducts cause severe pressure drops. They reduce suction efficiency and leave dust suspended in the facility air.
Occupational noise exposure limits are strictly enforced. Industrial shredders produce deafening decibel levels. You must utilize physical layout distancing to protect workers. Separate the control room from the primary shredding chamber. Use concrete acoustic barriers to deflect sound waves. Strategic placement of heavy, sound-absorbing curtains can drastically reduce ambient noise across the plant floor.
Beneath the heavy machinery lies the true backbone of your facility. Ignoring infrastructure requirements during the planning phase leads to catastrophic structural failures. Robust shredder plant design treats the building itself as part of the machine.
Shredders generate brutal high-torque vibration. Standard warehouse floors will crack under this dynamic load. You must account for these forces immediately. Plan for isolated, reinforced concrete pads. These pads must decouple the shredder vibrations from the main building foundation. Deep, reinforced floor trenches provide stability and house lower conveyor sections safely.
Industrial shredders require massive electrical currents. Routing these cables safely is a major layout challenge. You must decide between overhead cable trays and sub-floor trenching. Sub-floor trenching protects power lines from physical damage and falling debris. However, it complicates future facility reconfigurations. Overhead trays keep cables accessible but expose them to airborne dust and potential forklift collisions.
Always audit existing facility blueprints before approving an equipment layout. Match the proposed equipment envelopes against your physical realities. Note exact column placements. Measure ceiling heights at their lowest hanging points. Confirm roll-up door dimensions. A shredder is useless if it cannot fit through your receiving doors. Structural interference often forces expensive, last-minute layout compromises.
Common Infrastructure Pitfalls Chart | ||
Infrastructure Category | Common Mistake | Recommended Best Practice |
|---|---|---|
Foundation | Pouring standard slab concrete | Install vibration-isolated heavy duty pads |
Electrical | Exposing cables near loaders | Use reinforced sub-floor trenching |
Clearance | Ignoring low ceiling joists | 3D scan facility before finalizing equipment |
Vendor proposals often look impressive on paper. However, you must interrogate the underlying logic. Do not accept generic templates. A customized facility requires a highly specific engineering approach.
A strong layout proposal relies on your unique operational data. Does the vendor base the design on your specific material bulk density? Have they factored in your desired throughput goals? Did they ask for your daily loader traffic data? If a vendor offers a one-size-fits-all blueprint, reject it immediately. Generic templates ignore your unique operational constraints.
Look for concrete evidence of Systematic Layout Planning (SLP) methodologies. The vendor should provide clear flow diagrams. These diagrams must demonstrate minimized material travel distances. They should show logical physical proximity between connected processes. The path from the tipping floor to the outbound trucks should look clean, deliberate, and highly efficient.
Your business will likely grow. Your layout must accommodate this growth seamlessly. Does the proposed blueprint show designated ghost footprints? These are reserved physical spaces for future equipment additions. You might need magnetic separators, eddy currents, or secondary granulators next year. A rigid layout forces you to expand into a new building. A future-proof layout lets you plug new machines into existing empty nodes.
Establish strict criteria for advancing from initial concepts to final approvals. Demand progression from flat 2D CAD blocks to comprehensive 3D facility modeling. 3D models reveal spatial conflicts that 2D drawings hide. Use these detailed models to finalize your vendor shortlists. Only partner with teams who prove they understand both machinery and facility architecture.
A defensible facility layout bridges the massive gap between theoretical mechanical capability and actual production reality. It transforms a collection of heavy machines into a cohesive, highly profitable system.
Prioritize continuous material flow over high equipment density to maximize your daily output.
Treat maintenance clearance zones as non-negotiable elements within your facility blueprints.
Align foundational load-bearing and power routing plans before finalizing equipment procurement.
Demand future-proof ghost footprints to ensure your facility can scale with market demands.
We strongly encourage decision-makers to demand maintenance-inclusive, flow-optimized 3D models from vendors. Do this long before signing final procurement contracts. Take action today. Request a comprehensive site layout audit. Consult with engineering specialists to thoroughly review your current structural blueprints. Prevent bottlenecks before they are poured into concrete.
A: Space depends heavily on target throughput (tph) and material type. However, raw footprint calculations must include massive inbound storage areas and outfeed buffering zones. You must also mandate a minimum 3 to 4-meter maintenance perimeter around all primary reduction equipment for safe overhead crane access.
A: The most frequent error is underestimating the required floor space for staging incoming material. Operators also consistently neglect vertical overhead clearance. They fail to leave room for heavy lifting equipment needed during complex rotor swaps and routine screen replacements.
A: Yes, retrofitting is highly common. But it requires a strict engineering audit first. You must verify floor load capacities, existing ceiling clearances, and power infrastructure capabilities. You have to adapt the entire waste processing flow to fit safely within the rigid constraints of the older building.
A: Streamlined layouts drastically reduce overall conveyor lengths and unnecessary vertical elevation changes. This directly lowers the continuous horsepower requirements. It ultimately reduces the daily energy draw of all your supplementary material handling equipment.
