WX-1600D
WANXU

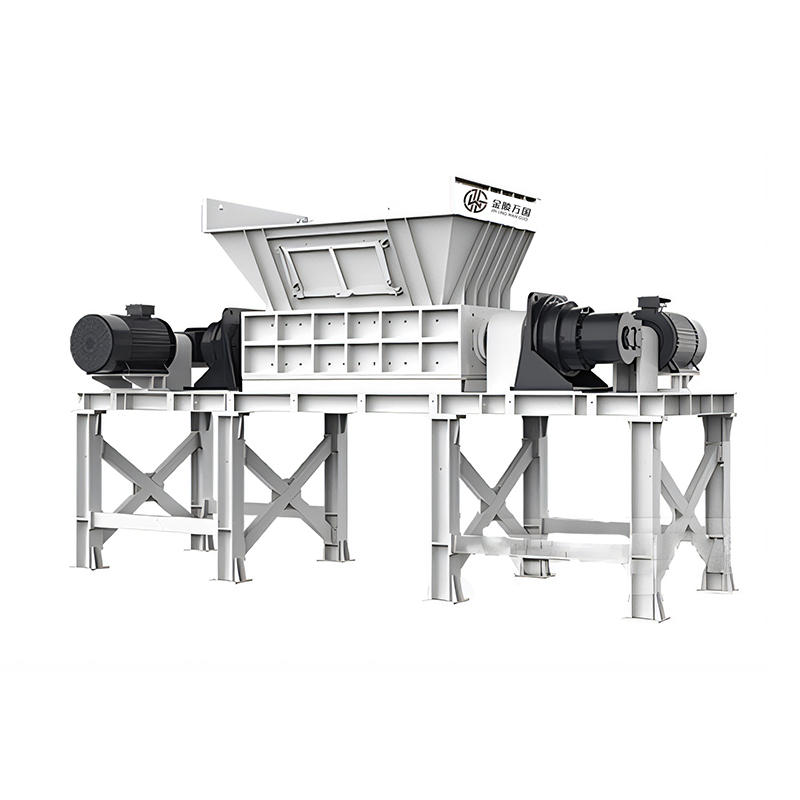

The WX-1600D double shaft shredder for plastic recycling and waste processing is meticulously engineered for highly efficient material handling in demanding industrial environments. When you run your hand along the exterior, the thick, stress-relieved welded steel frame feels incredibly solid, built specifically to withstand immense shearing forces without structural fatigue. This heavy-duty machine is ideally suited for recycling bulky plastic waste, scrap metal, and industrial refuse, rapidly reducing the material size to prepare it for secondary processing and sorting.
At its core, it features a robust double shaft mechanism outfitted with cold, precision-machined blades that bite through tough materials with a steady, rhythmic mechanical crunch. The carefully calibrated input speed of 12-20 turns/min ensures optimal shredding performance, preventing material bounce while maximizing the gripping and tearing torque for a wide range of applications. Furthermore, the integrated PLC controller provides simple, intuitive operation and precise control, significantly reducing the need for manual oversight.
Every unit is manufactured with exceptionally durable components to guarantee long-term reliability. While auxiliary systems may utilize a 15kW motor, the primary driving force is delivered by massive dual powerplants and a highly reliable reducer system. Despite its immense crushing power, the relatively compact size allows for easy integration into existing industrial equipment lines and waste management facilities.
Parameter | Value |
Model | WX-1600D |
Electric Cabinet | PLC Controller |
Input Speed | 12-20 turns/min |
Blade Size | dia 1000mm |
Shaft Size | dia 300mm |
Motor | 75kW*2 |
Reducer | ZQ500*2 |
Dimension | 4500*2000*3600mm |
The equipment features a low speed, high torque design that produces surprisingly low noise during operation. By adopting an advanced PLC control system for precise functions, it drastically reduces the physical volume of waste materials. This volume reduction directly translates to lower transportation and disposal costs, while simultaneously increasing the secondary sales value of uniform recycled materials, ensuring a rapid return on investment.
The electrical cabinet includes comprehensive start, stop, reverse, and automatic overload reverse functions. This intelligent anti-jamming logic, combined with physical emergency stop interlocks, provides all-around protection for both the operators and the machinery during high-intensity processing tasks.
Equipped with a massive 75kW*2 motor setup and heavy-duty ZQ500*2 reducers, the drive system can achieve devastating high torque shearing at low speeds. We strictly select international top-tier industrial components to guarantee an extended service life and unwavering reliability under continuous load.
To combat harsh working environments, the machine utilizes an independent bearing housing with six layers of seals. This meticulous engineering can effectively prevent water, dust, and corrosive liquids from penetrating the mechanics, significantly extending the life of the bearings and reducing unexpected downtime.
Maintenance is vastly simplified thanks to the modular architecture. The separate housing allows for the quick removal of the shaft, blade, bearing, and seal. This convenient access lowers daily maintenance difficulty and minimizes the labor hours required for consumable replacements.
The massive dia 300mm hexagonal shaft and corresponding blade hole ensure uniform stress distribution during operation. This spline shaft design eliminates weak points, providing ultimate fatigue resistance even when shearing through dense metal or thick plastic blocks.
Understanding that every waste stream is unique, different types of blades can be selected according to material and desired product shape. We offer tailored single-claw or multi-claw configurations in various thicknesses to precisely match your specific shredding requirements.
1. What materials can the twin-shaft shredder process?
The shredder is highly versatile and suitable for tough materials such as mixed plastics, scrap metals, industrial textiles, solid wood, paper rolls, waste tires, and bulky household appliances. Its immense shearing force breaks down these diverse materials with ease.
2. What industries usually use this shredder?
It is widely used across multiple sectors, heavily relied upon in industrial waste recycling facilities, urban garbage disposal plants, dedicated plastic recycling centers, wood processing mills, and large-scale papermaking industries seeking efficient volume reduction.
3. What is the shredding capacity of the machine?
The actual throughput capacity depends heavily on the density and type of the feeding material, but under standard operating conditions, the machine can process up to 2000-3000 kg per hour, maintaining a steady and continuous workflow.
4. What is the blade size?
The shredder's heavy-duty blade diameter is exactly 1000 mm. These large-scale blades provide a massive cutting surface area, ensuring that even oversized items are gripped and pulled into the cutting chamber efficiently.
5. Is the machine equipped with a control system?
Yes, it is equipped with an industrial-grade PLC control system for precise operation. This cabinet not only manages the 12-20 turns/min input speed but also constantly monitors motor load to trigger automatic reversal if uncrushable objects are detected.
Versatile Material Handling: Ideal for shredding dense, solid materials such as e-waste, non-ferrous metal, hard wood, rigid plastic, scrap tires, and wooden pallets, reducing them to uniform fractions.
Multi-Industry Use: Specifically designed for intensive industries such as medical waste recycling, e-waste dismantling disposal, and large-scale pallet recycling operations.
Support Waste Management: Actively helps municipalities and private facilities recycle municipal solid waste, commercial packaging materials, and heavy industrial waste, lowering landfill dependency.
Plastic Recycling Capability: Effectively recycles various plastic materials including agricultural films, thick-walled containers, and mixed packaging, preparing them for the washing and pelletizing stages.
Rugged Engineering Design: Designed with a stress-relieved welded frame to handle heavy-duty applications across multiple industries, ensuring reliable performance without structural warping over years of use.
Paper Industry Applications: Supports critical recycling steps in paper production and cardboard packaging waste management by tearing down large bales and rolls into manageable strips.
Beyond the robust physical specifications of the WX-1600D, the true value lies in our comprehensive manufacturer strength and rigorous quality control systems. Relying on a senior engineering R&D team, we do not just sell machinery; we provide industrial-grade turnkey solutions. From the initial material testing and model selection to the final factory inspection and full-line delivery, every step is governed by strict quality assurance protocols. Each shredder undergoes intense load testing before leaving the facility, ensuring that the heavy-duty components, from the dia 1000mm blades to the ZQ500*2 reducers, perform flawlessly together.
