WX-1200D
WANXU
The WX-1200D dual-shaft shredder is engineered for heavy-duty size reduction of bulky waste, specifically targeting metal sheets, aluminum profiles, and wooden pallets. By achieving a 50% to 80% volume reduction, this equipment significantly lowers transportation and landfill expenses while maximizing the economic recovery value of secondary materials. The machine is usually used for recycling various complex materials, including plastic bottles, metal sheet, batteries, and solar panels, providing a highly adaptable solution for diverse waste streams.

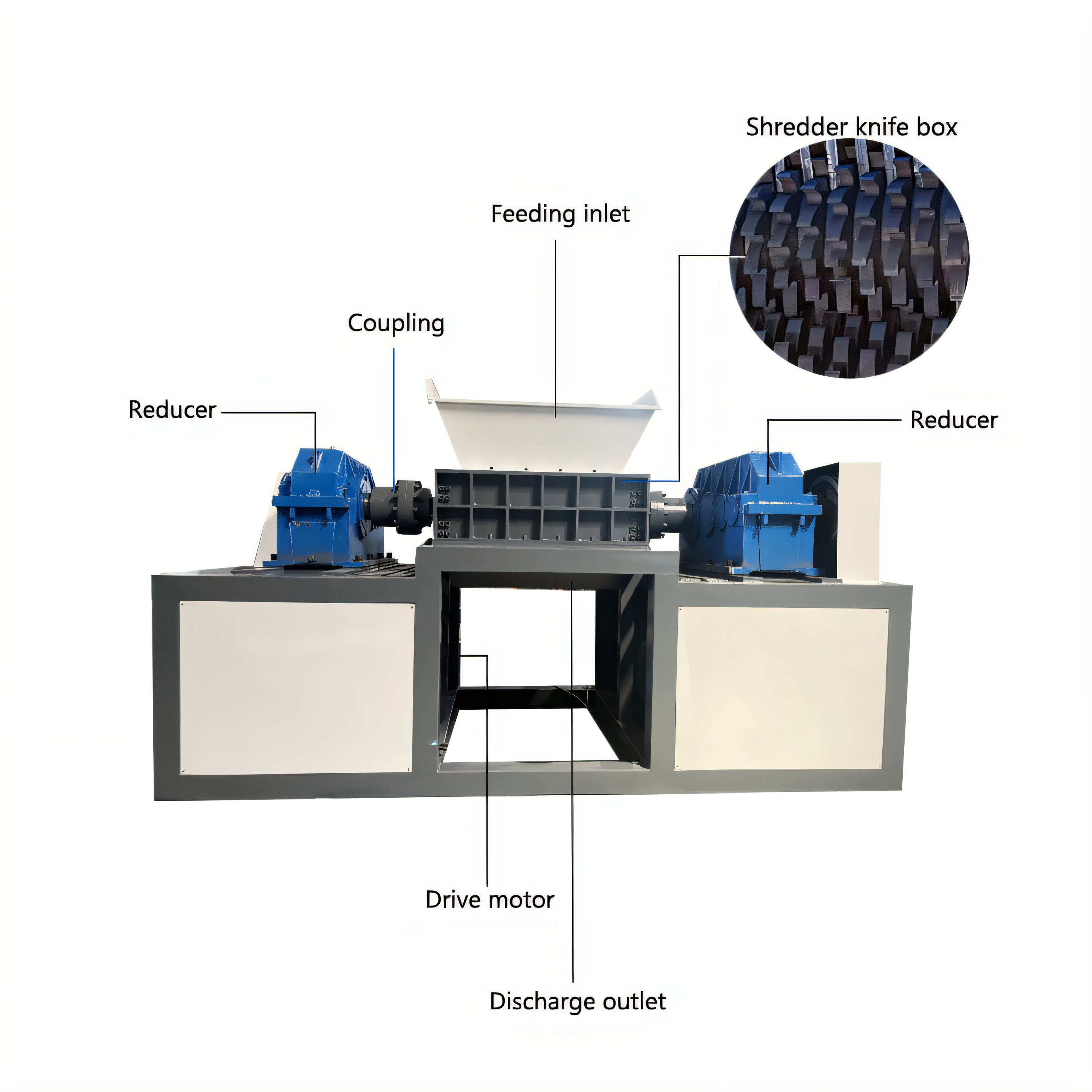

Built upon a heavy-duty welded steel frame, the machine resists intense vibrations during continuous operation. The internal architecture features a precision-machined spline shaft paired with a heavy-load planetary reducer. This combination delivers low-speed, high-torque shearing force, effectively eliminating stress concentration when processing rigid metal components. With a double shaft and double motor configuration, the machine is more stable and ensures a longer performance life even under demanding industrial conditions.
Equipped with a premium Siemens PLC intelligent control system, the shredder continuously monitors material flow. If a jam occurs, the system instantly detects the resistance and triggers an automatic reverse function, ejecting the stubborn material to protect the dual 55kw motors from overload damage. This automated responsiveness ensures the mechanical components are safeguarded against sudden spikes in torque.

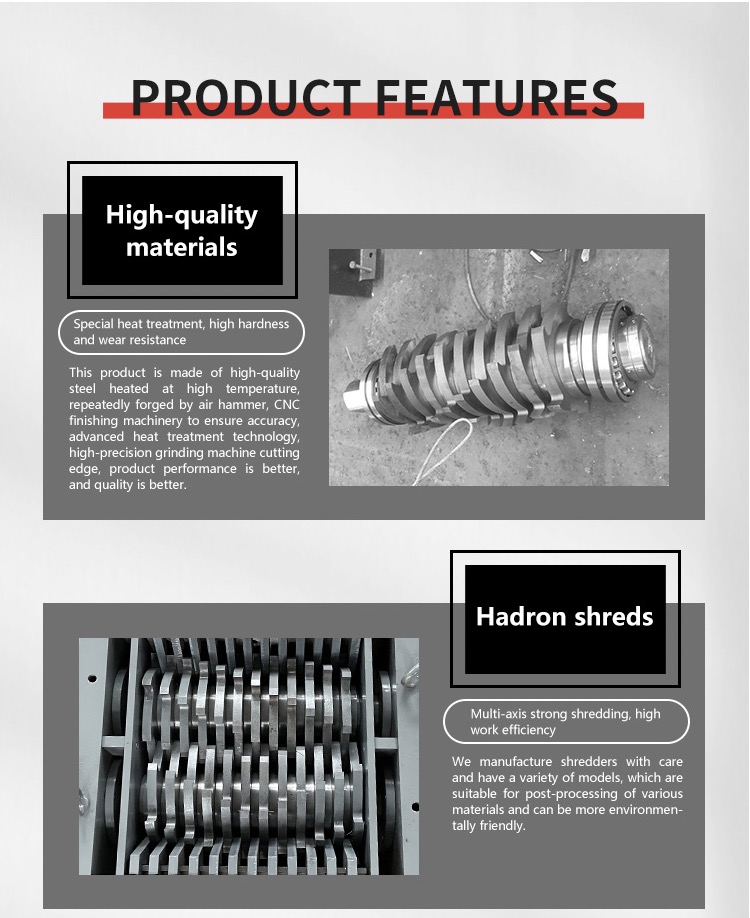

We offer tailored blade configurations ranging from 10mm to 80mm in thickness, available in single or multi-claw profiles based on your specific material. The modular, detachable blade box design simplifies maintenance, drastically reducing downtime and the physical effort required for blade replacement. Operators can quickly swap out worn sections without dismantling the entire cutting chamber, keeping operational interruptions to an absolute minimum.
Operating in environments filled with abrasive metal shards and fine dust requires superior protection. The shredder utilizes a 4-layer dustproof and waterproof sealing system. This barrier shields the internal SKF/FAG bearings from contamination, preventing mechanical failures and ensuring long-term operational stability even when processing damp or heavily soiled waste materials.
Understanding the precise operational specifications of the WX-1200D helps facility managers integrate this shredding unit into existing recycling lines. The dual 50kw motors provide consistent, reliable torque to the cutting chamber, ensuring that even the most unyielding metal sheets are processed efficiently. Furthermore, the 800mm diameter blades offer a wide bite angle, which is essential for gripping and pulling down large, bulky items like wooden pallets without material bounce. The integration of a PLC controller in the electric cabinet ensures that the input speed of 12-30 turns per minute is dynamically managed based on the load resistance. This careful balance of mechanical power and electronic regulation minimizes wear on the ZQ500 reducers and extends the overall lifecycle of the heavy-duty components. Below are the exact technical specifications of the standard model.
model | WX-1200D |
electric cabinet | plc controller |
input speed | 12-30 turns/min |
blade size | dia 800mm |
shaft size | dia 200mm |
motor | 50kw*2 |
reducer | ZQ500*2 |
dimension | 3500*1400*2000mm |

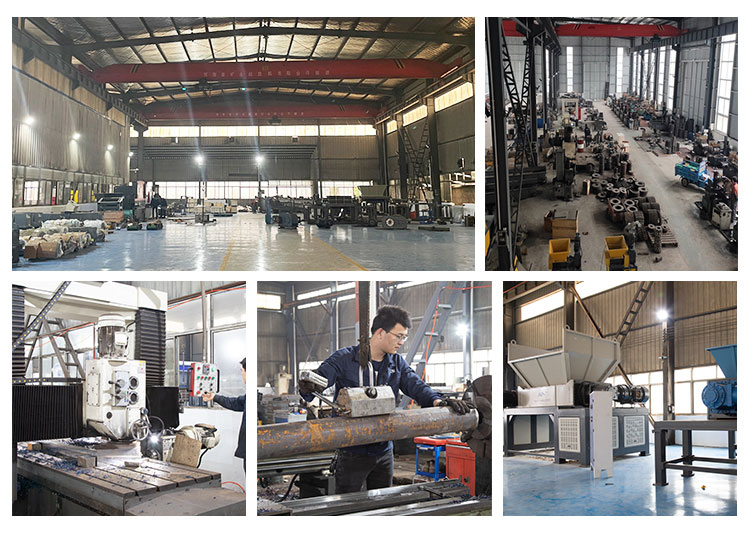

Why choose our WANXU? Firstly, having already been in this scrap recycling field for more than 10 years, we have accumulated enough experience and built a strong professional technical team to offer the best professional solution to you. If you have any needs, we can provide a one-stop solution tailored to your facility's operational demands. We leverage our deep industry knowledge to engineer equipment that addresses specific material reduction challenges, ensuring maximum efficiency.
Secondly, we prioritize rigorous quality control at every stage of production. To ensure the machine performance, before leaving our factory, we use actual material to test the machine according to the buyer’s needs to ensure every part is perfect. This strict protocol guarantees a 100% qualification rate, confirming that all mechanical and electrical components are in optimal working condition upon arrival.
Thirdly, recognizing the importance of continuous operation, for this shredder machine, we can provide a solid 2 year warranty. To guarantee optimal setup and long-term performance, we provide abroad engineer installation and training. Our engineer can also visit your location abroad to help you install the machine and ensure it is running smoothly, empowering your workforce to maintain the machinery properly.
